Power Management TPS63700DRCR TPS63700 360mA Buck-Boost Switching Regulator IC

ShenZhen Mingjiada Electronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Power Management TPS63700DRCR TPS63700 360mA Buck-Boost Switching Regulator IC from wholesalers

    Buy cheap Power Management TPS63700DRCR TPS63700 360mA Buck-Boost Switching Regulator IC from wholesalers
    • Buy cheap Power Management TPS63700DRCR TPS63700 360mA Buck-Boost Switching Regulator IC from wholesalers

    Power Management TPS63700DRCR TPS63700 360mA Buck-Boost Switching Regulator IC

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : TPS63700DRCR
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Power Management TPS63700DRCR TPS63700 360mA Buck-Boost Switching Regulator IC

    Power Management TPS63700DRCR TPS63700 360mA Buck-Boost Switching Regulator IC


    Product Description
    TPS63700DRCR is an inverting DC/DC converter generating a negative output voltage down to –15 V with output currents up to 360 mA, depending on input-voltage to output-voltage ratio. With a peak efficiency of 84%, the device is ideal for portable battery-powered equipment. The input voltage range of 2.7 V to 5.5 V allows the TPS63700DRCR to be directly powered from a Li-ion battery, from 3-cell NiMH/NiCd, from a 3.3-V or 5-V supply rail.
    The inverter operates with a fixed-frequency pulse width modulation (PWM) control topology. The device has an internal current limit, overvoltage protection, and a thermal shutdown for highest reliability under fault conditions.
    A switching frequency of typically 1.4 MHz allows the use of small external components enabling a small solution size.
    TPS63700DRCR comes in a small 3-mm × 3-mm SON-10 package.


    Features

    • Adjustable Output Voltage Down to –15 V
    • 2.7-V to 5.5-V Input Voltage Range
    • Up to 360-mA Output Current
    • 1000-mA Typical Switch Current Limit
    • Up to 84% Efficiency
    • Typical 1.4-MHz Fixed-Frequency PWM Operation
    • Thermal Shutdown
    • Typical –19-V Output Overvoltage Protection
    • 1.5-μA Shutdown Current
    • Small 3-mm × 3-mm SON-10 Package (DRC)

    Applications

    • Generic Negative Voltage Supply
    • Small-to-Medium Size OLED Displays
    • Bias Supply

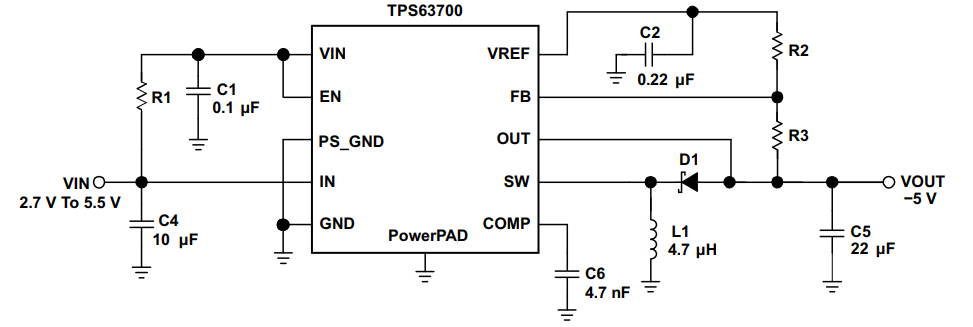

    Typical Application Schematic


    FAQ
    Q. Are your products original?
    A: Yes, all products are original, new original import is our purpose.
    Q:Which Certificates do you have?
    A:We are ISO 9001:2015 Certified Company and member of ERAI.
    Q:Can you support small quantity order or sample?Is the sample free?
    A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
    Q:How to ship my order? Is it safe?
    A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
    Q:What about the lead time?
    A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
