    Integrated Circuit CC2544RHBR 2.4 GHz RF Value Line SoC with 32kB flash USB SPI and UART

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : CC2544RHBR
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Integrated Circuit CC2544RHBR 2.4 GHz RF Value Line SoC with 32kB flash USB SPI and UART

    Integrated Circuit CC2544RHBR 2.4 GHz RF Value Line SoC with 32kB flash USB SPI and UART

    Product Description

    The is an optimized system-on-chip (SoC) solution for USB applications with datarates upto 2Mbps built with low bill-of-material cost. The combines the excellent performance of a leading RF transceiver with a single-cycle 8051 compliant CPU, 32-KB in-system programmable flash memory, up to 2-KB RAM, and many other powerful features.


    CC2544RHBR is compatible with the CC2541/CC2543/CC2545. It comes in a 5-mm × 5-mm QFN32 package, with SPI/UART/USB interface.


    CC2544RHBR comes complete with reference designs from Texas Instruments.


    The devices target wireless consumer and HID applications. The is ideal for USB dongle applications.

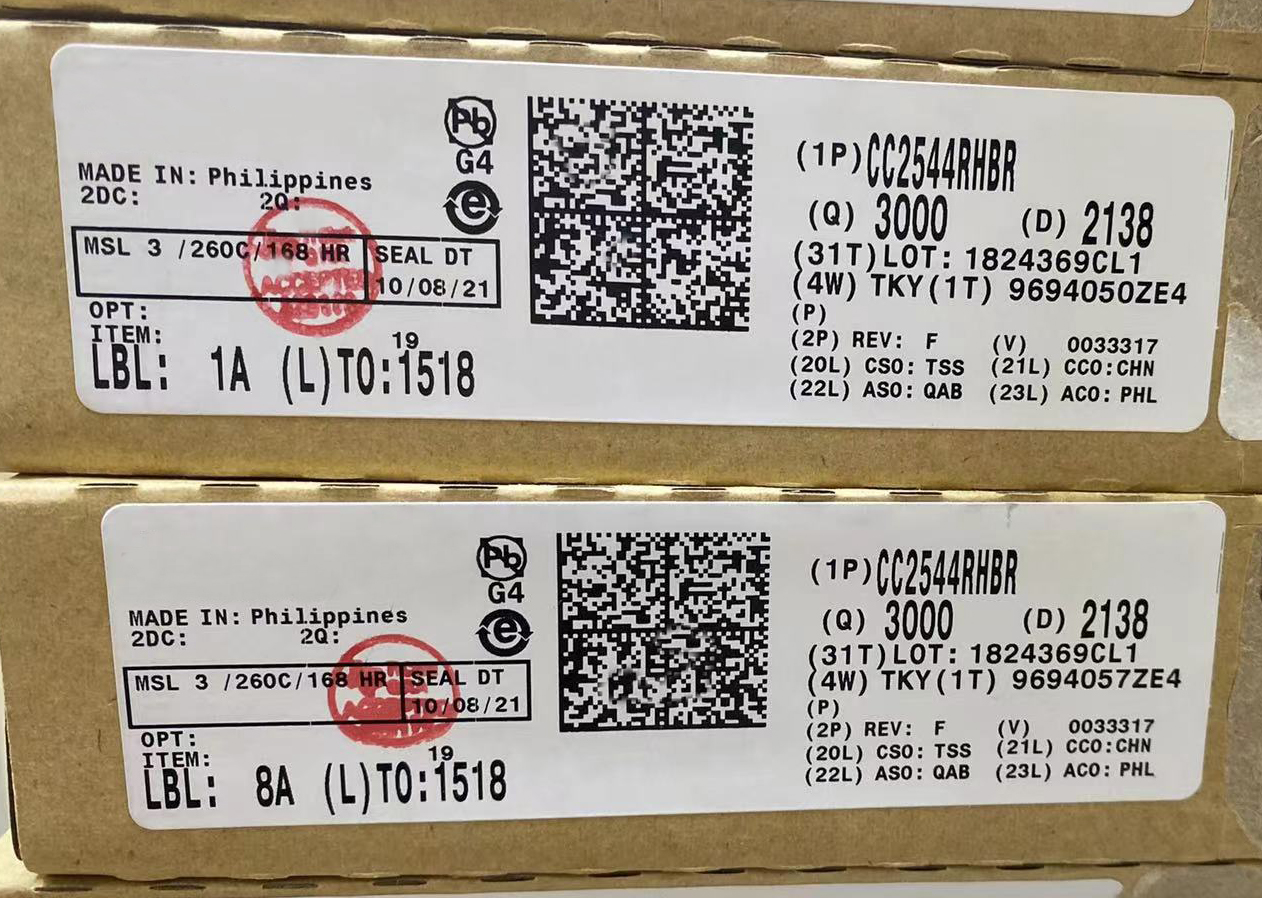

    Product Photo




    Features

    • Single-Chip 2.4-GHz RF Transceiver and MCU
    • Data Rates and Modulation Formats:
      • 2-Mbps GFSK, 320-kHz Deviation
      • 2-Mbps GFSK, 500-kHz Deviation
      • 1-Mbps GFSK, 160-kHz Deviation
      • 1-Mbps GFSK, 250-kHz Deviation
      • 500-kbps MSK
      • 250-kbps GFSK, 160-kHz Deviation
      • 250-kbps MSK
    • Excellent Link Budget, Enabling Long Range
      Without External Front-Ends
    • Programmable Output Power up to 4 dBm
    • Excellent Receiver Sensitivity (–88 dBm at 2 Mbps)
    • Suitable for Systems Targeting Compliance With
      Worldwide Radio Frequency Regulations:
      ETSI EN 300 328 and EN 300 440 Category 2 (Europe),
      FCC CFR47 Part 15 (US), and ARIB STD-T66 (Japan)
    • Accurate RSSI Function

    CC2544 - SWRS103D


    APPLICATIONS

    Proprietary 2.4-GHz Systems

    Human Interface Devices (USB Dongle)

    Consumer Electronics
