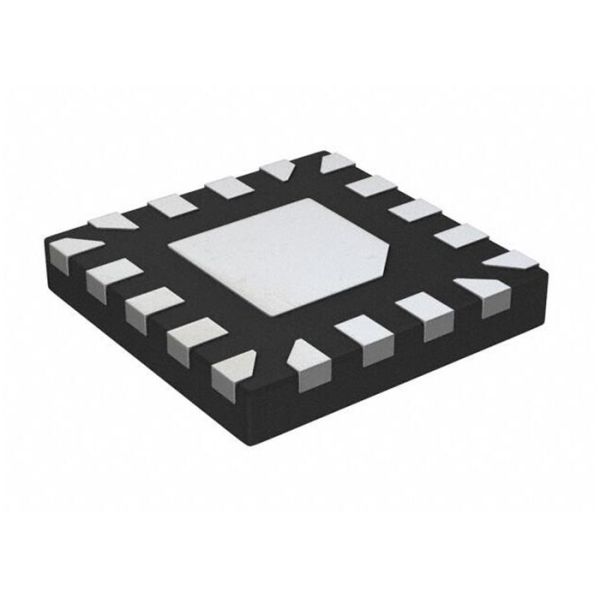

    12Gbps PI3DBS12212AXUAEX 2 Channel Analog Switches IC X2QFN18 Circuit Chip

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : PI3DBS12212AXUAEX
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    12Gbps PI3DBS12212AXUAEX 2 Channel Analog Switches IC X2QFN18 Circuit Chip

    12Gbps PI3DBS12212AXUAEX 2 Channel Analog Switches IC X2QFN18 Circuit Chip


    Product Description Of PI3DBS12212AXUAEX

    PI3DBS12212AXUAEX is an 4 to 2 differential channel multiplexer/demultiplexer switch. This solution can switch multiple signal types up to data rate of 12Gbps.


    Product Attributes Of PI3DBS12212AXUAEX

    Part NumberPI3DBS12212AXUAEX
    Applications
    Thunderbolt
    Multiplexer/Demultiplexer Circuit
    2:1
    Number of Channels
    2
    Voltage - Supply, Single (V+)
    3.3V
    -3db Bandwidth
    10.6GHz
    Features
    Bi-Directional
    Operating Temperature
    -40°C ~ 85°C (TA)
    Mounting Type
    Surface Mount
    Package / Case
    18-XFQFN Exposed Pad
    Supplier Device Package
    18-X2QFN (2x2)

    Features Of PI3DBS12212AXUAEX

    • 2 Differential Channel, 2:1 Mux/DeMux
    • Up to 12Gbps data rate for SAS 3.0 Application
    • 10Gbps Ethernet, USB 3.2 Gen 2
    • Compatible with Thunderbolt signaling, 10.3125Gbps
    • Bi-directional operation
    • 3dB bandwith: 10.6GHz
    • Low Bit-to-Bit Skew, 1ps typ
    • Low channel-to-channel skew, 7ps typ
    • Low insertion loss: -1.5dB@5 GHz, -1.7dB@6 GHz
    • Return loss: -19.6dB@5 GHz, -17.2dB@6 GHz
    • Low Crosstalk: -30.5dB@6 GHz
    • Low Off Isolation: -17.1dB@6 GHz
    • Low power consumption - 200µA typ
    • Supply Voltage 3.3V
    • Industrial Temperature Range: -40°C to 85°C

    Applications Of PI3DBS12212AXUAEX

    • Routing high speed differential signals
    • 10 Gigabit Ethernet
    • PCI-Express 3.0
    • SAS 3.0
    • USB 3.2 Gen 2
