    3.5A Step-Down Converter LMR14030SQDDARQ1 Buck Switching Regulator IC

    3.5A Step-Down Converter LMR14030SQDDARQ1 Buck Switching Regulator IC


    Product Description Of LMR14030SQDDARQ1

    LMR14030SQDDARQ1 is a 40 V, 3.5 A step down regulator with an integrated high-side MOSFET. With a wide input range from 4 V to 40 V, it’s suitable for various applications from industrial to automotive for power conditioning from unregulated sources.


    Specification Of LMR14030SQDDARQ1

    Part Number

    LMR14030SQDDARQ1

    Number of Outputs

    1

    Voltage - Input (Min)

    4V

    Voltage - Input (Max)

    40V

    Voltage - Output (Min/Fixed)

    0.8V

    Voltage - Output (Max)

    28V

    Current - Output

    3.5A

    Frequency - Switching

    200kHz ~ 2.5MHz

    Operating Temperature

    -40°C ~ 125°C (TJ)


    Features Of LMR14030SQDDARQ1

    • Qualified for Automotive Applications

    • 4 V to 40 V Input Range

    • 3.5 A Continuous Output Current

    • Ultra-low 40 µA Operating Quiescent Current

    • 90 mΩ High-Side MOSFET

    • Minimum Switch-On Time: 75 ns

    • Current Mode Control

    • Adjustable Switching Frequency from 200 kHz to 2.5 MHz

    • Frequency Synchronization to External Clock

    • Spread Spectrum Option for Reduced EMI

    • Internal Compensation for Ease of Use

    • High Duty Cycle Operation Supported

    • Precision Enable Input

    • 1 µA Shutdown Current

    • External Soft-start

    • Thermal, Overvoltage and Short Protection

    • 8-Pin HSOIC with PowerPAD™ Package


    Applications Of LMR14030SQDDARQ1

    • Automotive Battery Regulation
    • Industrial Power Supplies
    • Telecom and Datacom Systems
    • General Purpose Wide Vin Regulation

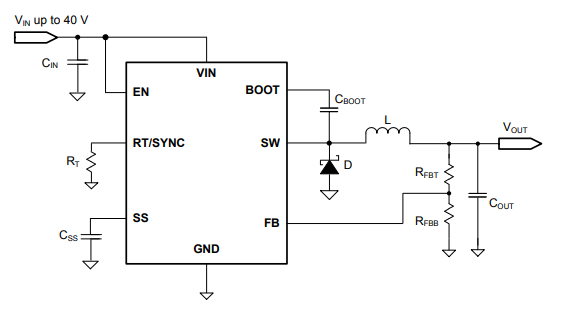

    Simplified Schematic Of LMR14030SQDDARQ1
