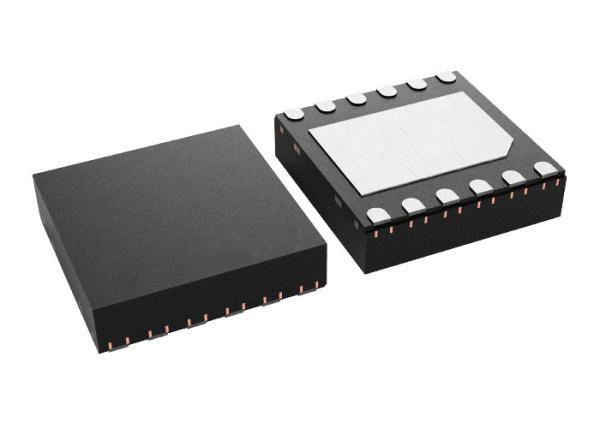

    Voltage Regulators IC LMR23615QDRRRQ1 1.5A Synchronous Step Down Converter WFDFN12

    Voltage Regulators IC LMR23615QDRRRQ1 1.5A Synchronous Step Down Converter WFDFN12


    Product Description Of LMR23615QDRRRQ1

    LMR23615QDRRRQ1 SIMPLE SWITCHER® is an easyto-use 36 V, 1.5 A synchronous step-down regulator. LMR23615QDRRRQ1 With a wide input range from 4 V to 36 V, the device is suitable for various applications from industrial to automotive for power conditioning from unregulated sources. Peak-current-mode control is employed to achieve simple control loop compensation and cycleby-cycle current limiting. A quiescent current of 75 µA makes it suitable for battery-powered systems. An ultra-low 2-µA shutdown current can further prolong battery life. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components.


    Specification Of LMR23615QDRRRQ1

    Part NumberLMR23615QDRRRQ1
    Function
    Step-Down
    Output Configuration
    Positive
    Topology
    Buck
    Output Type
    Adjustable
    Number of Outputs
    1
    Voltage - Input (Min)
    4V
    Voltage - Input (Max)
    36V
    Voltage - Output (Min/Fixed)
    1V
    Voltage - Output (Max)
    28V
    Current - Output
    1.5A
    Frequency - Switching
    2.425MHz
    Synchronous Rectifier
    Yes
    Operating Temperature
    -40°C ~ 125°C (TJ)
    Mounting Type
    Surface Mount, Wettable Flank
    Package / Case
    12-WFDFN Exposed Pad
    Supplier Device Package
    12-SON (3x3)

    Features Of LMR23615QDRRRQ1

    • 4V to 36V Input Range
    • 1.5A Continuous Output Current
    • Integrated Synchronous Rectification
    • 60-ns Minimum Switch-On Time
    • Internal Compensation for Ease of Use
    • Adjustable Switching Frequency
    • PFM Mode at Light Load
    • Frequency Synchronization to External Clock
    • Soft Start into a Prebiased Load
    • High Duty-Cycle Operation Supported
    • Output Short-Circuit Protection With Hiccup Mode


    Applications Of LMR23615QDRRRQ1

    • Automotive Infotainment: Clusters, Head Unit, Heads-Up Display
    • USB Charging
    • General Off-Battery Power Application

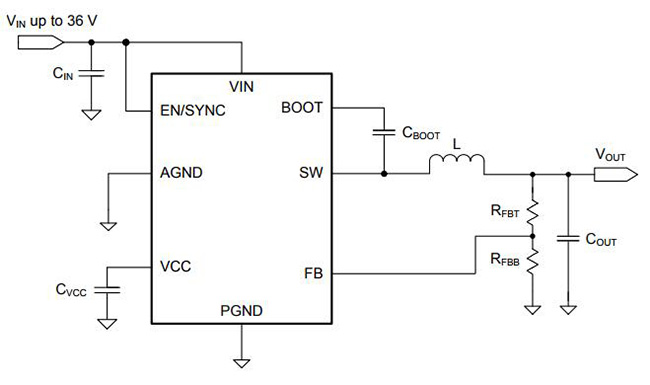

    Simplified Schematic Of LMR23615QDRRRQ1

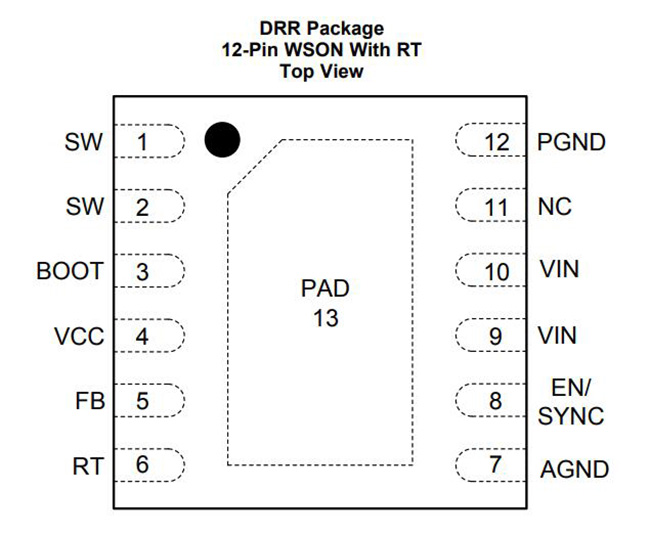

    Pin Configuration Of LMR23615QDRRRQ1
